IFC 100

Electromagnetic flow converter for combination with OPTIFLUX and WATERFLUX flow sensors

  • Compact, remote field, wall-mounted and rack-mounted housing
  • With many sensor and process diagnostics for standard requirements
  • 4-wire, 4…20 mA, pulse, frequency, status, HART®

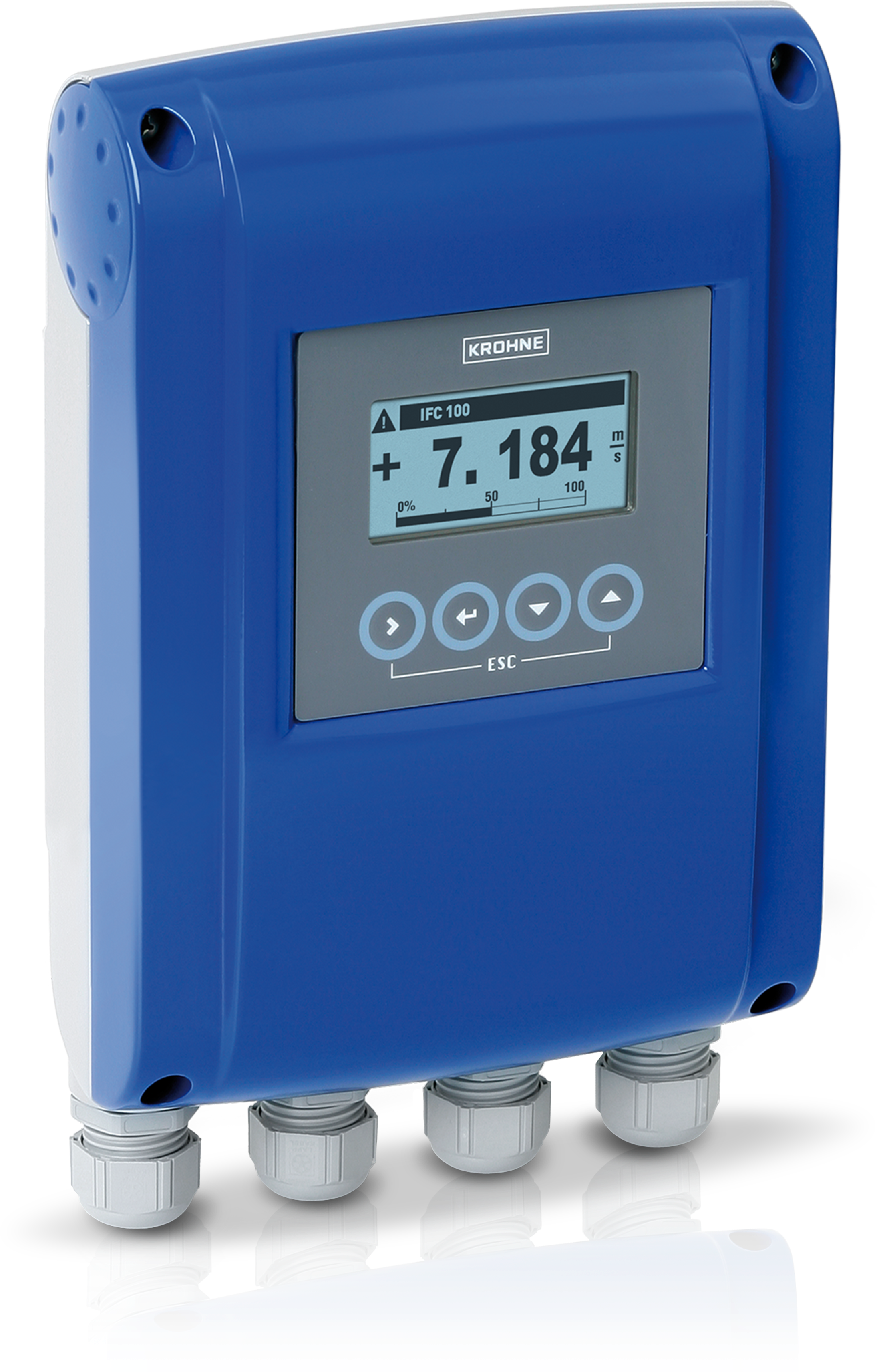

IFC 100 W – Version in wall-mounted aluminium housing

IFC 100 W Elecromagnetic flow converter  – Version in wall-mounted aluminium housing

The IFC 100 is a 4-wire electromagnetic signal converter. Combined with the flow sensors of the OPTIFLUX and WATERFLUX series it forms the OPTIFLUX 1100, OPTIFLUX 2100, OPTIFLUX 4100, OPTIFLUX 5100, OPTIFLUX 6100 and WATERFLUX 3100 electromagnetic flowmeters for standard applications with conductive liquids.

Download Center

  • Technical datasheets and handbooks
  • Flyers and brochures
  • Certificates and approvals
  • Software and driver
View IFC 050/IFC 070/IFC 100/IFC 300 related downloads
